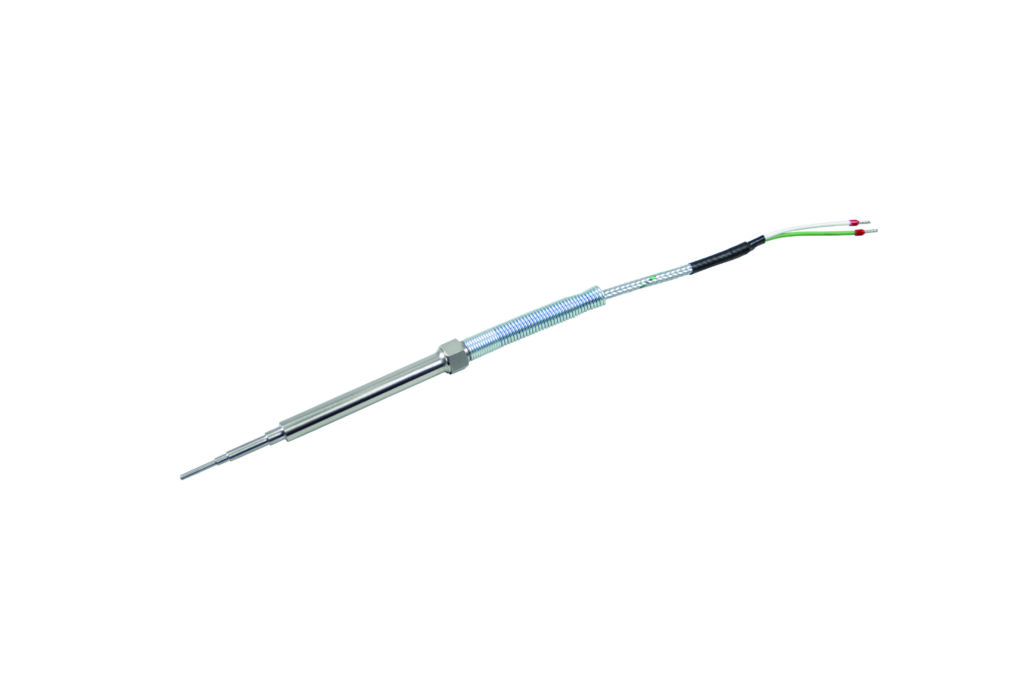

Temperature sensor particularly fast response for adjustable clamp screw connection
Data sheet for TF67: N/A
Drawing(s) für TF67: Technical drawing (1)
| Thermocouples | Type K, other elements are possible |
| Resistance thermometers | Pt100, other elements are possible |
| Tolerance classes | Type K class 1, type J class 2, Pt100 class B or AA |
| Circuit | Single or double thermocouple, resistance thermometers in 2-, 3- or 4-wire technology |
| Measuring range | Type K -50…+800°C, Pt100 -50…+200°C, other ranges are possible |
| Degree of protection | IP66 |
| Protection tube material | 1.4541 / 1.4571 |
