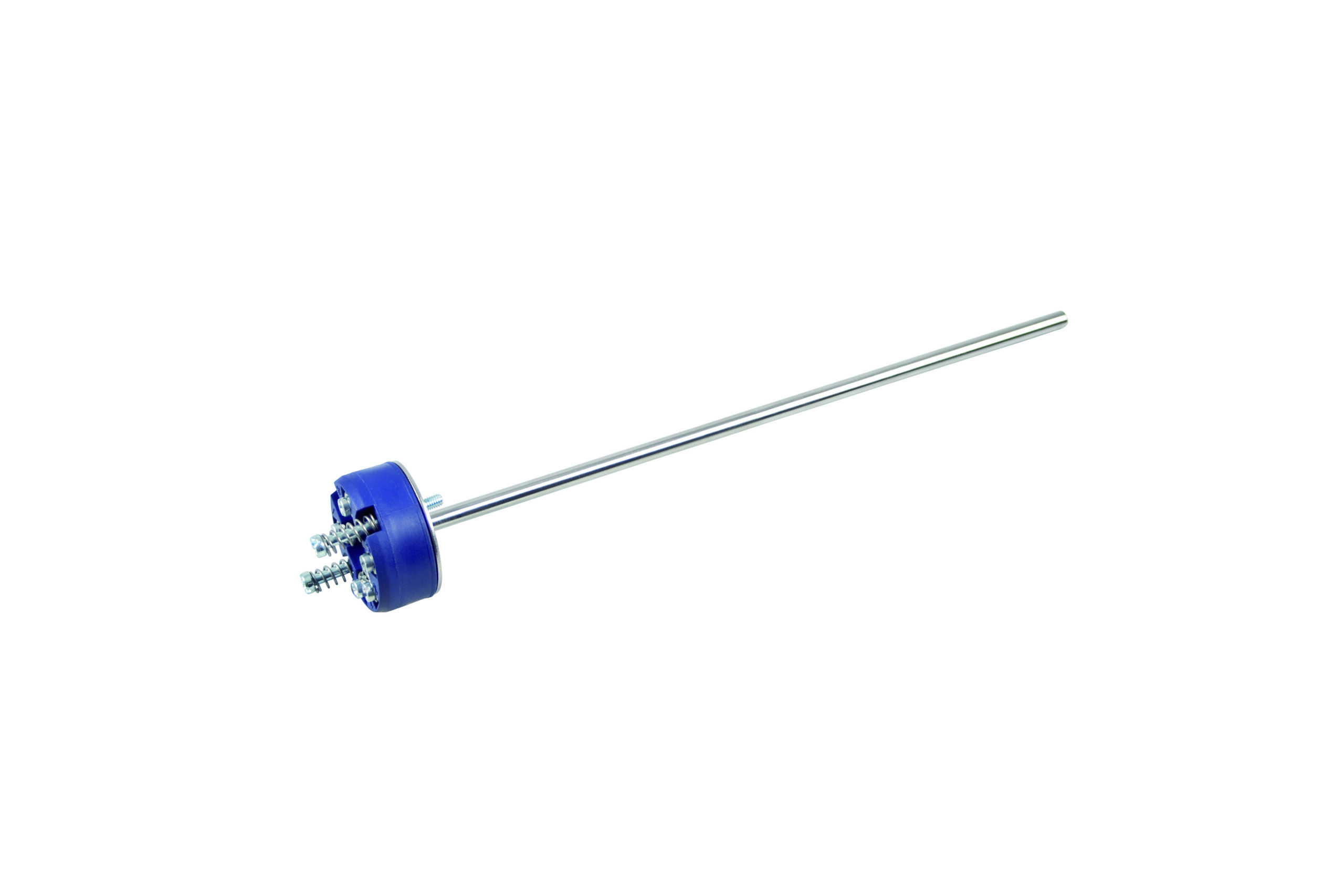

Gauge slide with built in transducer
Data sheet for TU5: N/A
Drawing(s) für TU5: Technical drawing (1) , Technical drawing (2)
| Thermocouples | Type K, type J |
| Resistance thermometers | Pt100, Pt1000, Ni100, Ni1000 |
| Tolerance classes | Type K class 1, type J class 2, Pt100 class B or AA |
| Circuit | Single or double thermocouple, resistance thermometers in 2-, 3- or 4-wire technology |
| Measuring range | Type K -50…+800°C, Pt100 -50…+200°C, other ranges are possible |
| Protection tube material | 1.4541 / 1.4571 |
